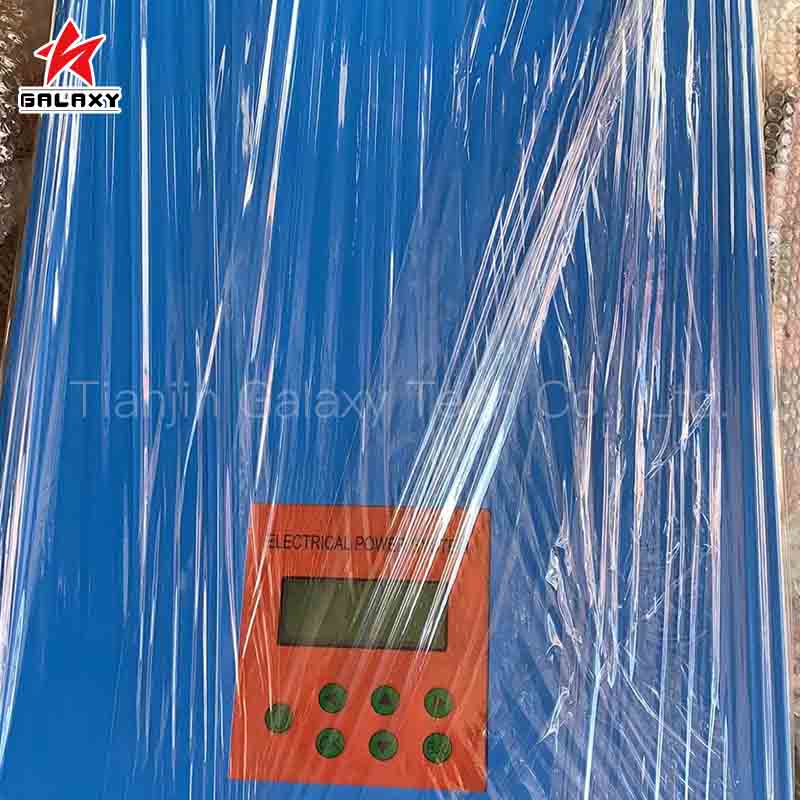

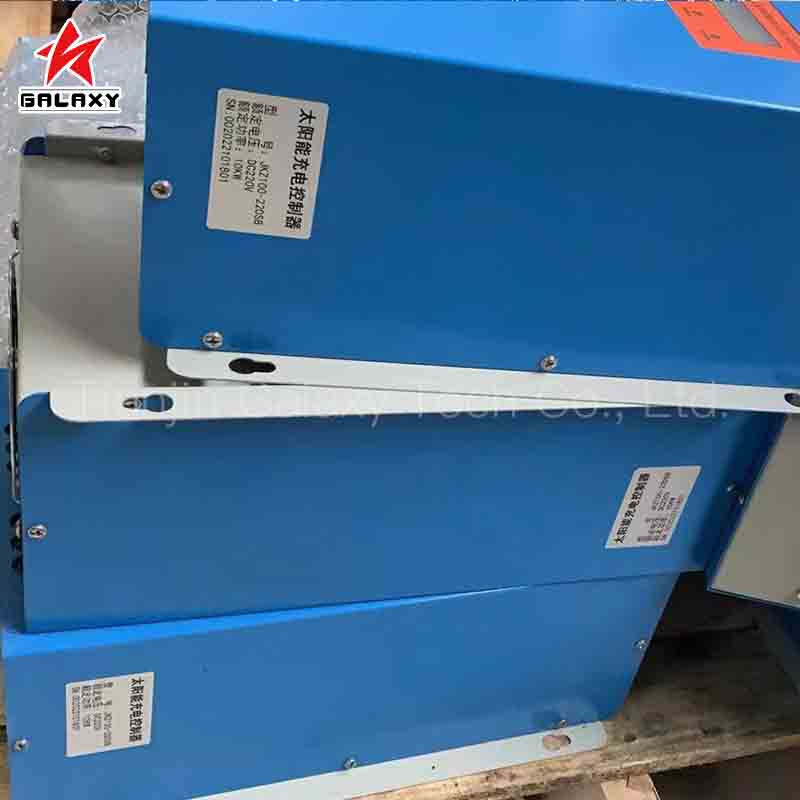

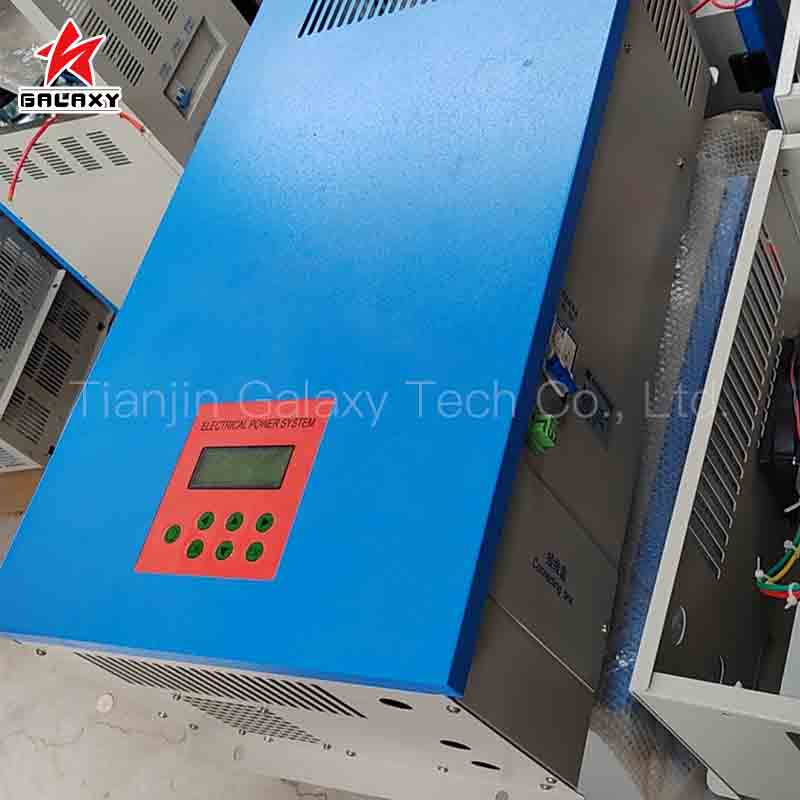

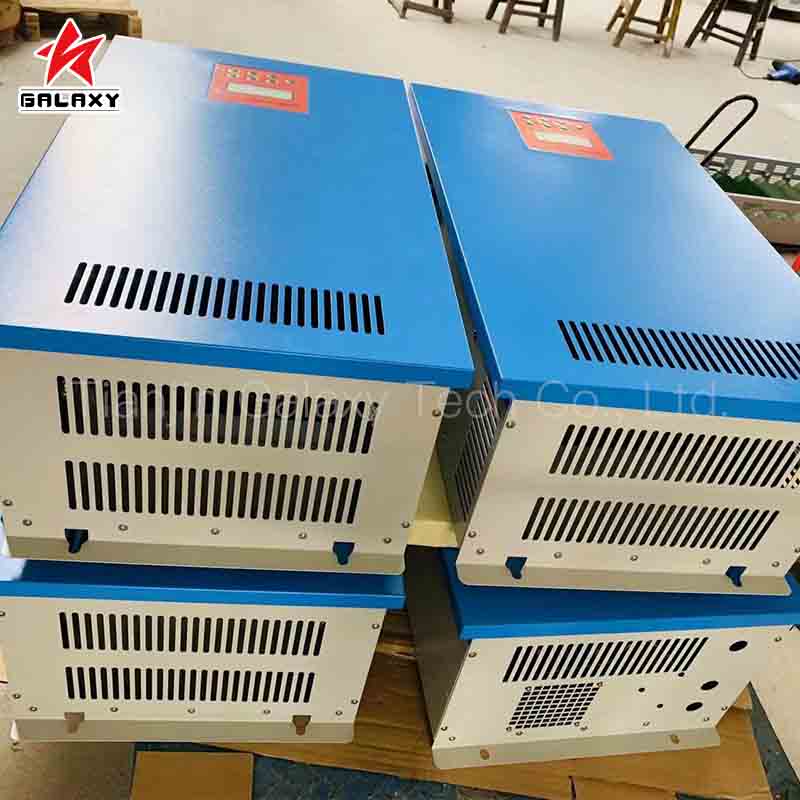

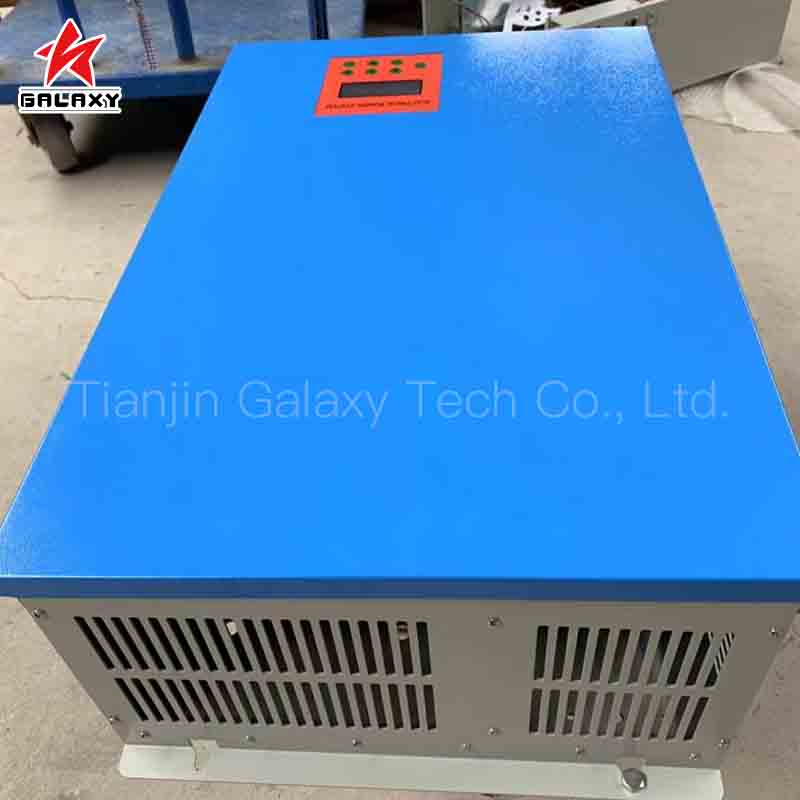

5kW 220V Wind Turbine On-grid Controller Inverter All In One Machine
Wind Controller&Inverter integrated machine
MPPT included,and 30 points settable
Speed VS Power output setting
Automatic&manual over speed protection
RS485 monitoring mode optional
Remote control of "brake"&"run"functions
Easy installation
Product Description
Wind Controller&Inverter integrated machine
MPPT included,and 30 points settable
Speed VS Power output setting
Automatic&manual over speed protection
RS485 monitoring mode optional
Remote control of "brake"&"run"functions
Easy installation
Wind power on-grid controller&inverter integrated machine with MPPT function. It looks concise and can be easily operated.
Applications

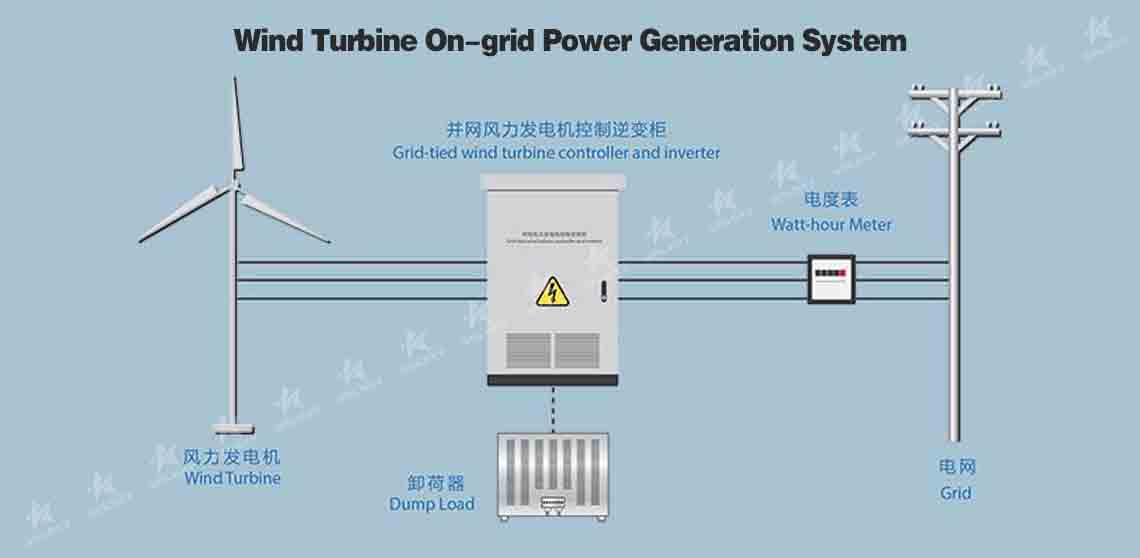

Distributed wind power grid-tied system
Solar&wind hybrid power grid-tied system
Wind power grid-tied system
Features
Wind Controller&Inverter integrated machine
MPPT included, and 30 points settable
Complete protection functions
RS485 monitoring mode optional
Product Parameters
|
Model Specifications |
5KW Single-phase |
|
|
Enter |
Maximum Power Voltage Tracking Range |
DC 100~500V |
|
Rated voltage |
DC 360V |
|
|
Configuration |
MPPT (with common independent maximum power tracking) |
|
|
Output |
Power |
5000W |
|
Voltage range |
Single-phase AC 185 ~ 264V (It can be adjusted according to the requirements of different countries and regions) |
|
|
Rated voltage |
220VAC |
|
|
Frequency |
Grid frequency 50/60Hz (configurable) |
|
|
Phase |
Simplex |
|
|
Power factor |
0.95 |
|
|
Maximum current |
22.7A |
|
|
Maximum current distortion THD |
At rated power and sine wave<3.5% |
|
|
Efficiency |
97% (European efficiency: 96.4%) |
|
|
Structure |
Enclosure rating |
IP65/NEMA 4X |
|
Cooling method |
Natural cooling |
|
|
Audible noise |
<50dB |
|
|
Data interface |
External RS 232C/485 |
|
|
Protect |
Inverter |
Input over voltage, output short circuit protection, overload, overheat protection |
|
Power grid |
Anti-islanding effect (IEEE 1547), grid under voltage and over voltage protection, Grid low frequency and high frequency protection |
|
|
Environment |
Working temperature |
Air circulation, -10°C~40°C (50°C) |
|
Storage ambient temperature |
-25℃~60℃ |
|
|
Relative humidity |
0~100% |
|
|
Environment |
No flammable gas, corrosive gas, oil fume, dust, etc. around |
|
|
Standby power consumption |
<250mW |
|
|
Altitude |
6600 feet (2000 meters) |
|
|
weight |
KG |
50 |
