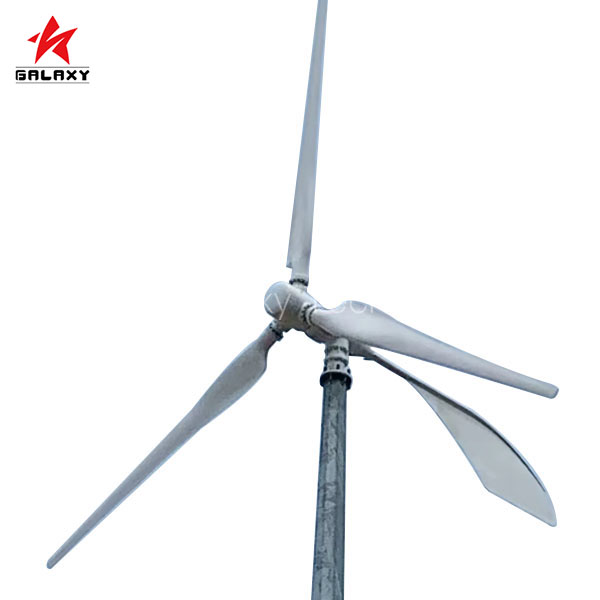

5KW Civilian Variable Pitch Wind Turbine with Controller

Product Description

I. Functional Characteristics of Variable Pitch Wind Turbines

1.1 Advantages of Variable Pitch Technology

The pitch wind turbine produced by our factory: it is the optimal choice of pitch system for all wind turbine generators at present, the pitch system utilizes the generator's own power value to change the blade angle, the impeller in the operation process, if the generator reaches the rated power, the pitch system is influenced by the generator's own power, it will change the pitch angle linearly in real time, so that the generator output power is stable in the rated range. The pitch mechanical structure and control that is simple and reasonable, original pitch technology will greatly reduce the equipment failure rate.

1.2 System Advantages

Variable Pitch Control Series Wind Turbine Advantages:

（1）The use of direct-drive permanent magnet generator, high-efficiency rare earth materials, the shell is made of carbon steel.

（2）The wind wheel structure is simple, the hub adopts the mature variable pitch structure, no complex moving mechanical devices, the failure rate is extremely low.

（3）The use of six high-end transmission slip ring conductive, no twisted cable phenomenon.

（4）The rotor vertical axis without rigid drive mechanism, only the use of conventional bearings, this structure can be due to unstable airflow brought about by the jitter and vibration easily dissolved, conducive to improving the life of the wind turbine.

（5）Generator efficiency of more than 90%, wind energy utilization factor of 42%.

（6）Unique simple control method, automatic wind, effectively improve the efficiency of the wind generator; make full use of the permanent magnet generator to do its own torque to control the blade pitch, to achieve the best state of power generation, annual power generation increased by more than 30%.

（7）With automatic electromagnetic unloading function.

（8）Using a unique sealing structure, it is completely moisture-proof and dust-proof.

II. The System Composition

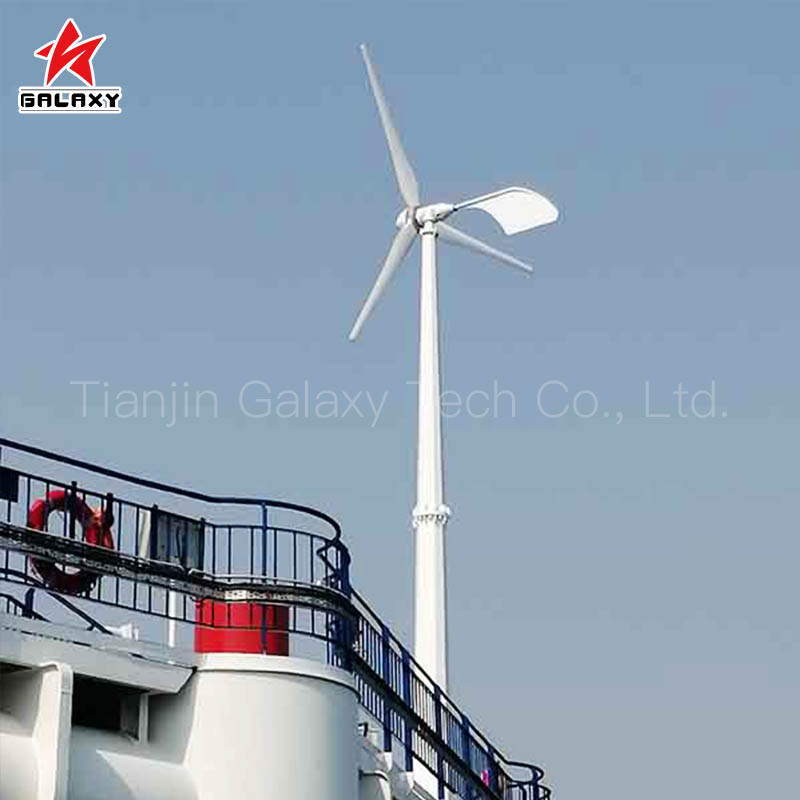

Wind turbine models off-grid for off-grid power supply, usually used in small villages, islands, marine platforms, posts, border defense, pastoral areas, mobile base stations, independent households, monitoring power supply, farms with electricity and other needs. Due to the influence of wind resources, the off-grid system can also be composed of wind and solar panels and wind-solar complementary power generation system.

Used for grid-connected power generation generally use more than 2KW type wind turbine generator, can also be matched with photovoltaic, forming a wind-scenery complementary grid-connected system.

Off-grid or grid-connected generator sets, conventionally equipped with controllers, inverters are the same power specifications. It can also be equipped with controllers and inverters larger than its own rated power.

Product Parameters

Variable pitch wind turbine is a new type of wind power generation equipment, which has the following advantages:

1. High efficiency: The pitch control wind turbine can automatically adjust the angle of the blades according to the change of wind speed, so that variable pitch control wind turbine is always in the best working condition, which improves the utilization rate of wind energy and thus increases the power generation efficiency.

2. Low noise: The blades of variable pitch wind turbine do not generate noise when adjusting the angle, so it can be installed near cities and residential areas without affecting the surrounding environment.

3. High reliability: The variable pitch wind turbine adopts advanced control technology and materials, which has high reliability and stability and can operate normally under harsh environmental conditions.

4. Convenient maintenance: The structure of variable pitch wind turbine is simple and easy to maintain, which can reduce the maintenance cost and repair time.

5. Wide range of application: Variable pitch wind turbine is suitable for various wind speeds and wind directions, and can be used in different areas and occasions.Therefore this small wind turbine or small wind generator can also be called roof wind turbine,residential wind generator, domestic wind generator,home wind power turbine.

6. Environmental protection: Pitch control wind turbine uses clean energy and has no pollution emission, which helps to reduce environmental pollution.

7. Economical: The cost of variable pitch control wind turbine is low and has high cost performance, which can bring economic benefits to users.


In conclusion, variable pitch wind turbine has the advantages of high efficiency, low noise, high reliability, easy maintenance, wide range of application, environmental protection and economy, etc. It is a very promising wind power generation technology.
