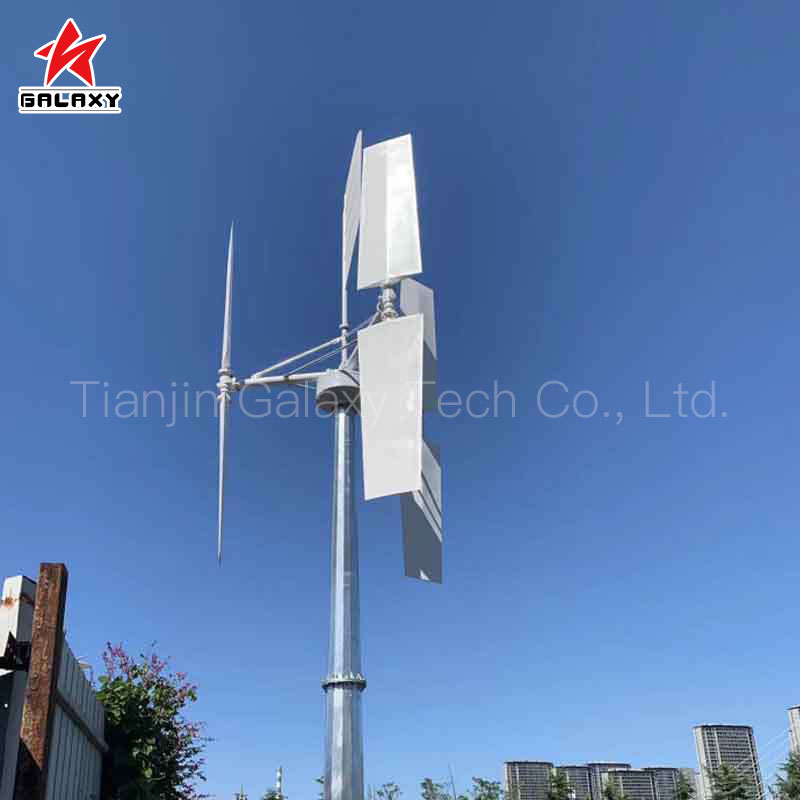

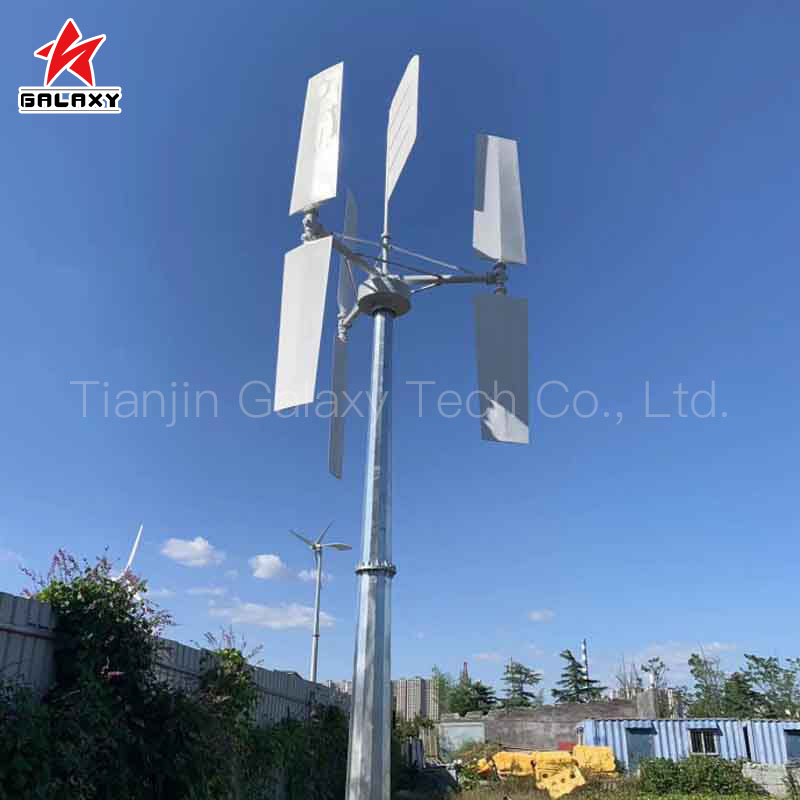

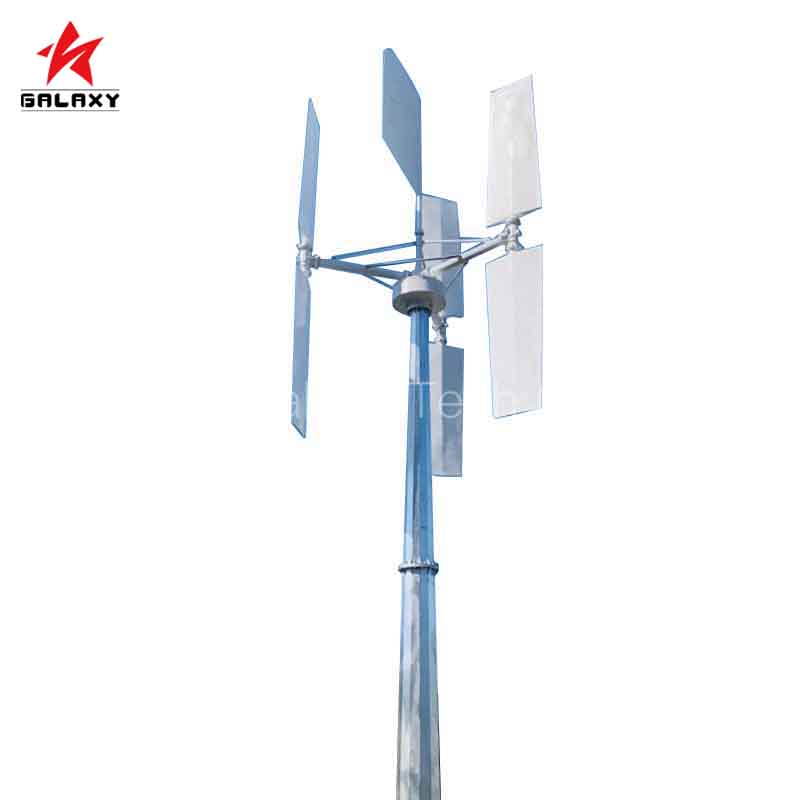

40 RPM 5KW H-Type High Efficiency Wind Turbine
Product Attributes :
Advantages of vertical axis H-wind turbines：
1. High wind energy utilization efficiency: the wind energy utilization efficiency of vertical axis H-type wind turbine is relatively high, usually above 70%.
2. Flexible number of blades: Compared with the horizontal axis wind turbine, the number of blades of vertical axis H-type wind turbine is more flexible and can be designed according to the specific needs.
3. Convenient maintenance: due to the smaller number of blades, the maintenance of vertical axis H-type wind turbine is relatively convenient, and it is possible to adopt the way of replacing the blades as a whole or partially.
4. Low noise: compared with other types of wind turbines, vertical axis H-type wind turbines are less noisy and have less impact on the surrounding environment.
Products Description
The vertical-axis H-type wind turbine is a common type of wind turbine characterized by a vertically placed shaft, also known as "H-type" or "straight-blade". It consists primarily of a rotating component, usually the wind turbine wheel, and a fixed component, the turbine housing.
The following are some of the characteristics of vertical axis H-type wind turbines:
1. High wind energy utilization efficiency: the wind energy utilization efficiency of vertical axis H-type wind turbine is relatively high, usually above 70%.
2. Flexible number of blades: Compared with the horizontal axis wind turbine, the number of blades of vertical axis H-type wind turbine is more flexible and can be designed according to the specific needs.
3. Convenient maintenance: due to the smaller number of blades, the maintenance of vertical axis H-type wind turbine is relatively convenient, and it is possible to adopt the way of replacing the blades as a whole or partially.
4. Low noise: compared with other types of wind turbines, vertical axis H-type wind turbines are less noisy and have less impact on the surrounding environment.
5. Aesthetically pleasing appearance: Vertical-axis H-type wind turbines are relatively aesthetically pleasing in appearance and can be integrated into the environment as an aesthetic architectural element.
In conclusion, vertical-axis H-type wind turbines are characterized by high wind energy utilization efficiency, flexible number of blades, easy maintenance, low noise, and aesthetic appearance, and are therefore widely used in the field of wind power generation, and can be installed on rooftops and similar high-rise buildings.
Product Parameters
|
JX-H 5KW vertical axis wind turbine technical parameters |
|
|
5000 |
|
|
Maximum power (W) |
7200 |
|
Diameter of wind wheel (m) |
3.6 |
|
Number of blades (blade rotation assembly) |
3 sets |
|
Blade length (m) (blade rotation assembly) |
2.4 meters, total height of 2 blades plus self-propelled assembly 5.4 meters |
|
Blade width (m) |
800mm |
|
Blade form |
resistance type |
|
Wind Turbine Operation Mode |
rotational mode of rotation (e.g. of solar system) |
|
Rated Speed (r/min) |
40 |
|
Rated Wind Speed (m/s) |
12 |
|
3 |
|
|
Working Wind Speed(m/s) |
3-25 |
|
Safe Wind Speed(m/s) |
40 |
|
Output Voltage(DC/V) |
216V (output voltage can be customized upon request) |
|
Tower height (m) |
10 |
|
Top mass (kg) |
900 |
|
output control |
Control Inverter |
|
Insulation class |
B |
|
Blade Material |
Carbon steel |
|
Overs-peed Protection |
Electromagnetic protection |
