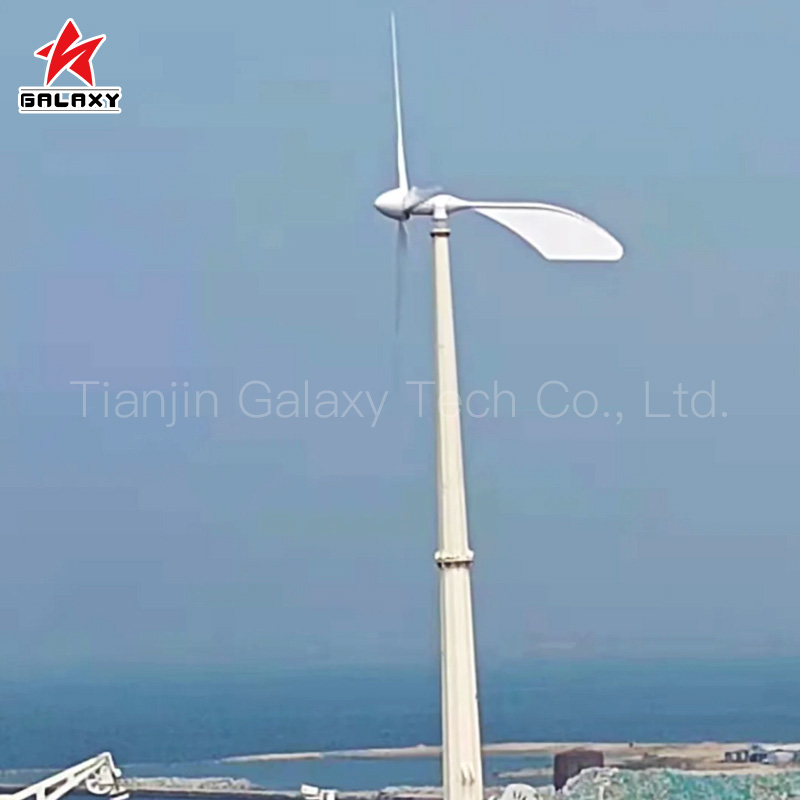

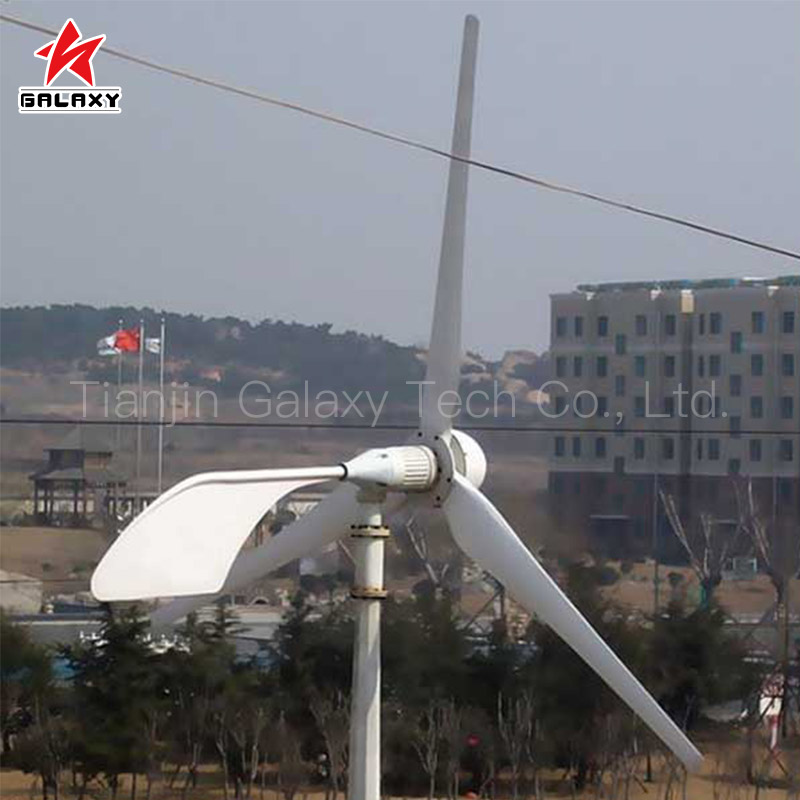

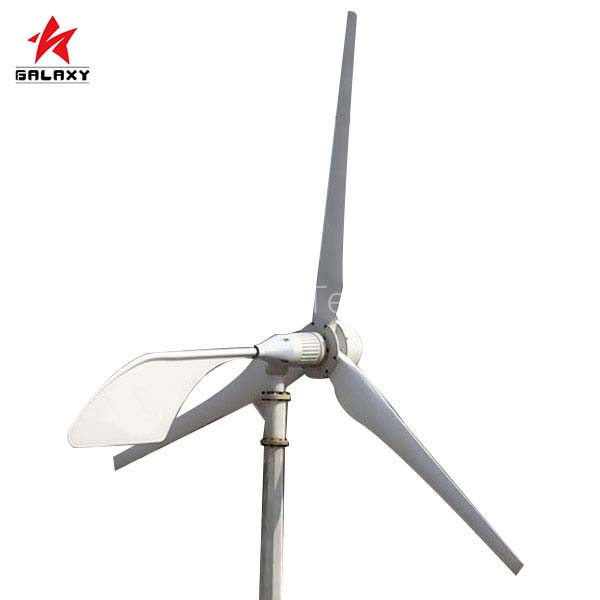

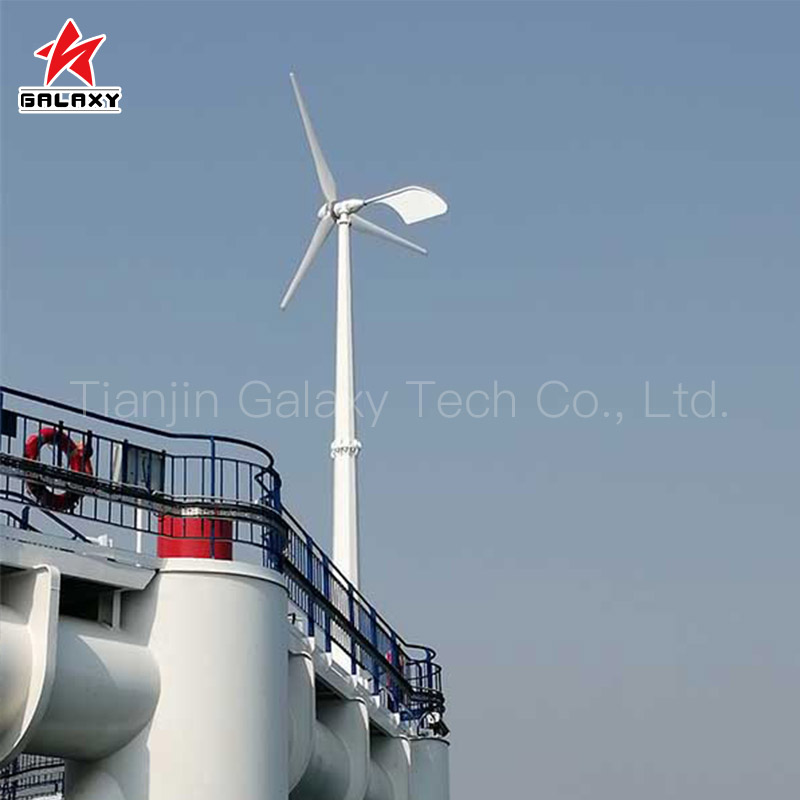

3KW Wind Turbine for Home or Marine Power Generation
Advantage
1. It has obtained national invention patent and utility model patent
2. It is not easy to change the working point, which greatly improves the reliability.
3. The rudder control is based on the principle of earth's gravity, and the control of the working point will not be affected by time, wear and tear, and other factors.
4. In actual operation, thanks to the unique technological innovation, the moving part is only the rudder's horizontal axis rotation, the maximum working angle is 90°, basically no vibration.
Product Description
Advantage
1. It has obtained national invention patent and utility model patent
2. It is not easy to change the working point, which greatly improves the reliability.
3. The rudder control is based on the principle of earth's gravity, and the control of the working point will not be affected by time, wear and tear, and other factors.
4. In actual operation, thanks to the unique technological innovation, the moving part is only the rudder's horizontal axis rotation, the maximum working angle is 90°, basically no vibration.
5. Realize complete sealing, internal standard bearings, waterproof sealing rings are used in the connecting ports of each component, which completely realize the sealing of sand, dust, water and salt spray.
Horizontal Axis 3KW Wind Turbine Generator Is Widely Used:
◆ Off-grid power generation can meet the needs of: air conditioners, refrigerators, washing machines, water pumps (1KW), rice cookers, color TVs, lighting, electric fans, charging, heating, electromagnetic stoves, communication base stations, computers, power tools and so on.
◆ Wind-solar complementary street lamp independent power supply and centralized power supply, monitoring equipment power supply, family, communication base station, pasture, forest protection, traffic lights, communication base station power supply, etc. It can also be used by multiple wind turbines interconnected.
◆On-grid power generation
Related equipment: wind-solar hybrid controller, pure sine wave inverter, solar panel.

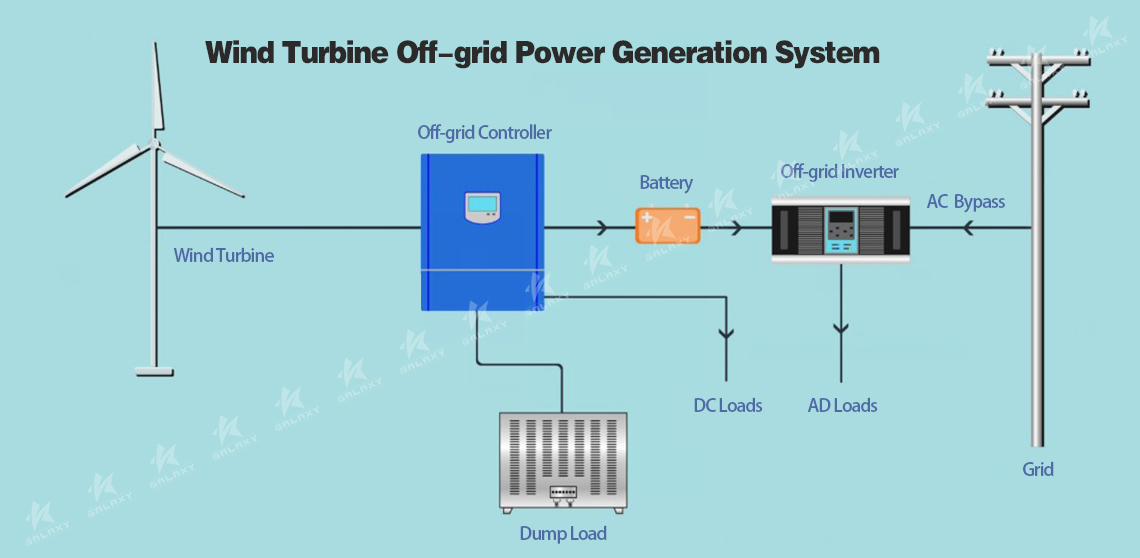

Wind Turbine Off-grid Power Generation System

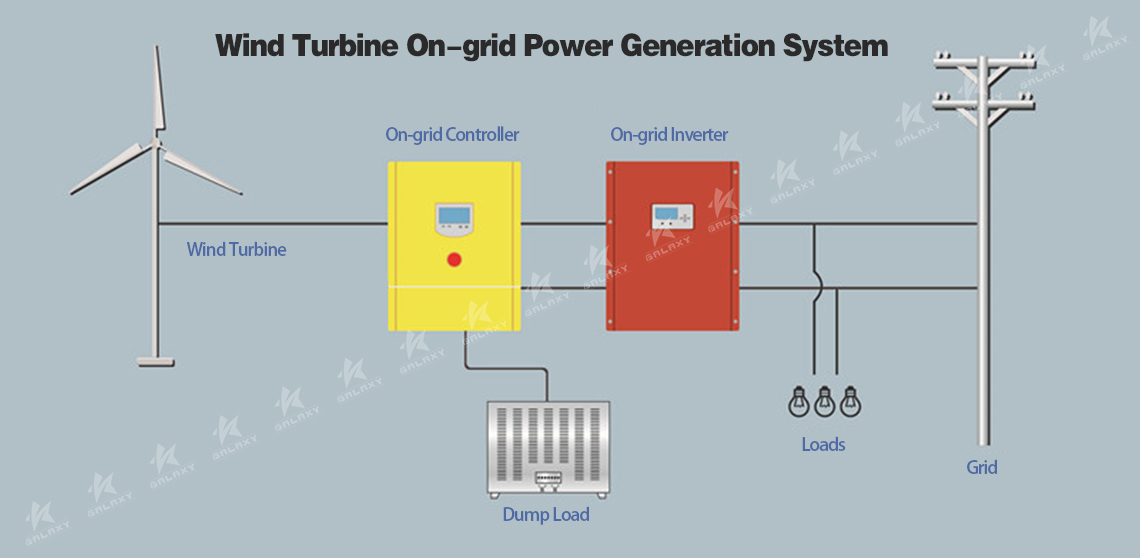

Wind Turbine On-grid Power Generation System
Product Parameters
|
Model |
JXHA-3KW |
|
Rated Power |
3KW |
|
Maximum Power |
4.5KW |
|
Wind Wheel Diameter |
4.6m |
|
Blade Material |
Reinforced FRP |
|
Rated Rotation Speed |
240 r/min |
|
Start Wind Speed |
3(m/s) |
|
Rated Wind Speed |
9(m/s) |
|
Working Wind Speed |
4-25m/s |
|
Security Wind Speed |
50m/s |
|
Generator Type |
Direct Drive Permanent Magnet Generator 3-phase AC PM |
|
The Output Voltage |
DC48v-DC380v Optional |
|
Insulation Class |
B |
|
Ambient Temperature |
-25℃ - 55℃ |
|
Over Speed Protection |
Wind pressure automatic yaw protection, electromagnetic brake protection |
|
Tower Type |
Guy Cable tower, Free Stand Tower (optional) |
|
Tower Height |
8-12 meters optional |
|
Noise Level |
<65dB |
|
Top Weight |
130kg |
|
Degree of Protection |
IP54 |
|
Surface Treatment |
Galvanized, surface paint |
|
Control Inverter |
Off-grid: PWM wind and solar hybrid controller, pure sine wave inverter; On-grid: controller, On-grid inverter |
