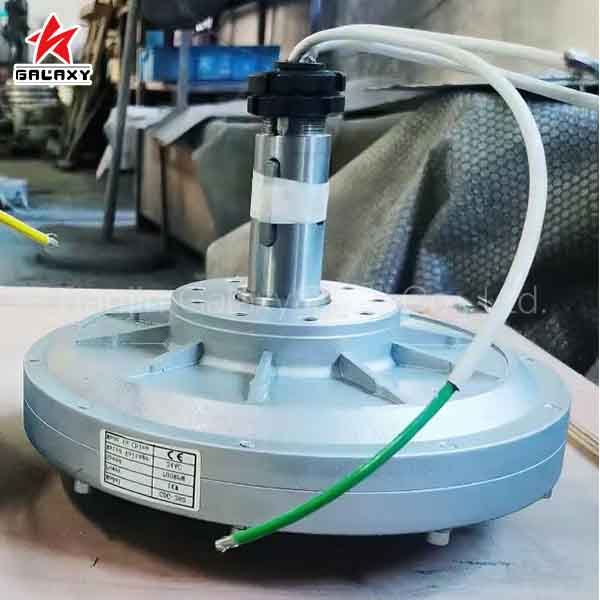

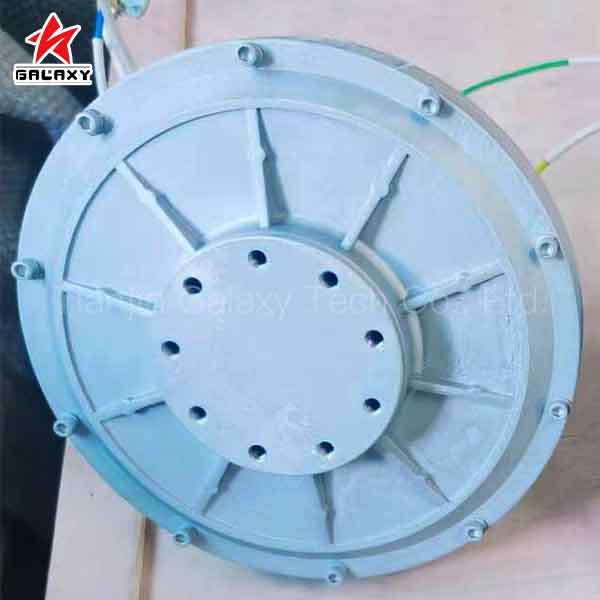

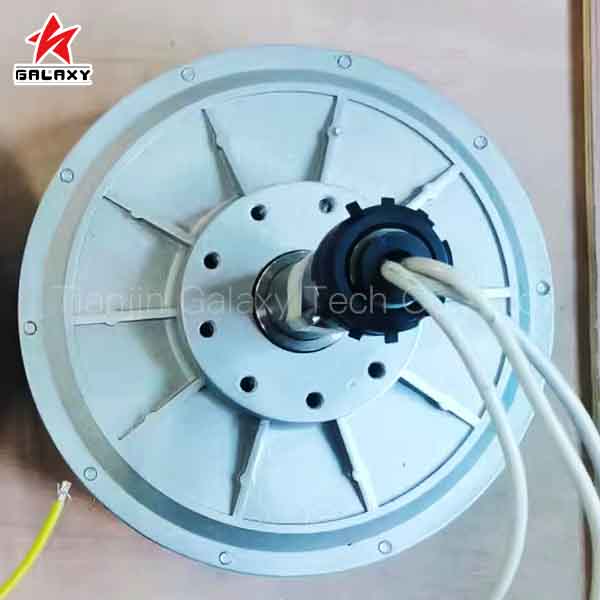

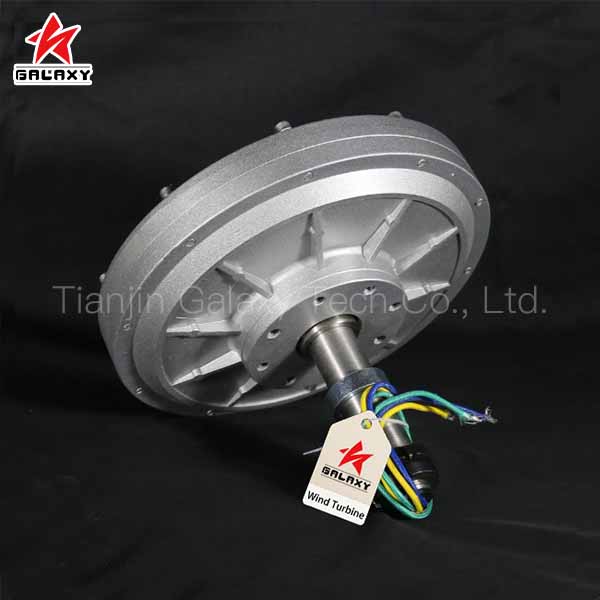

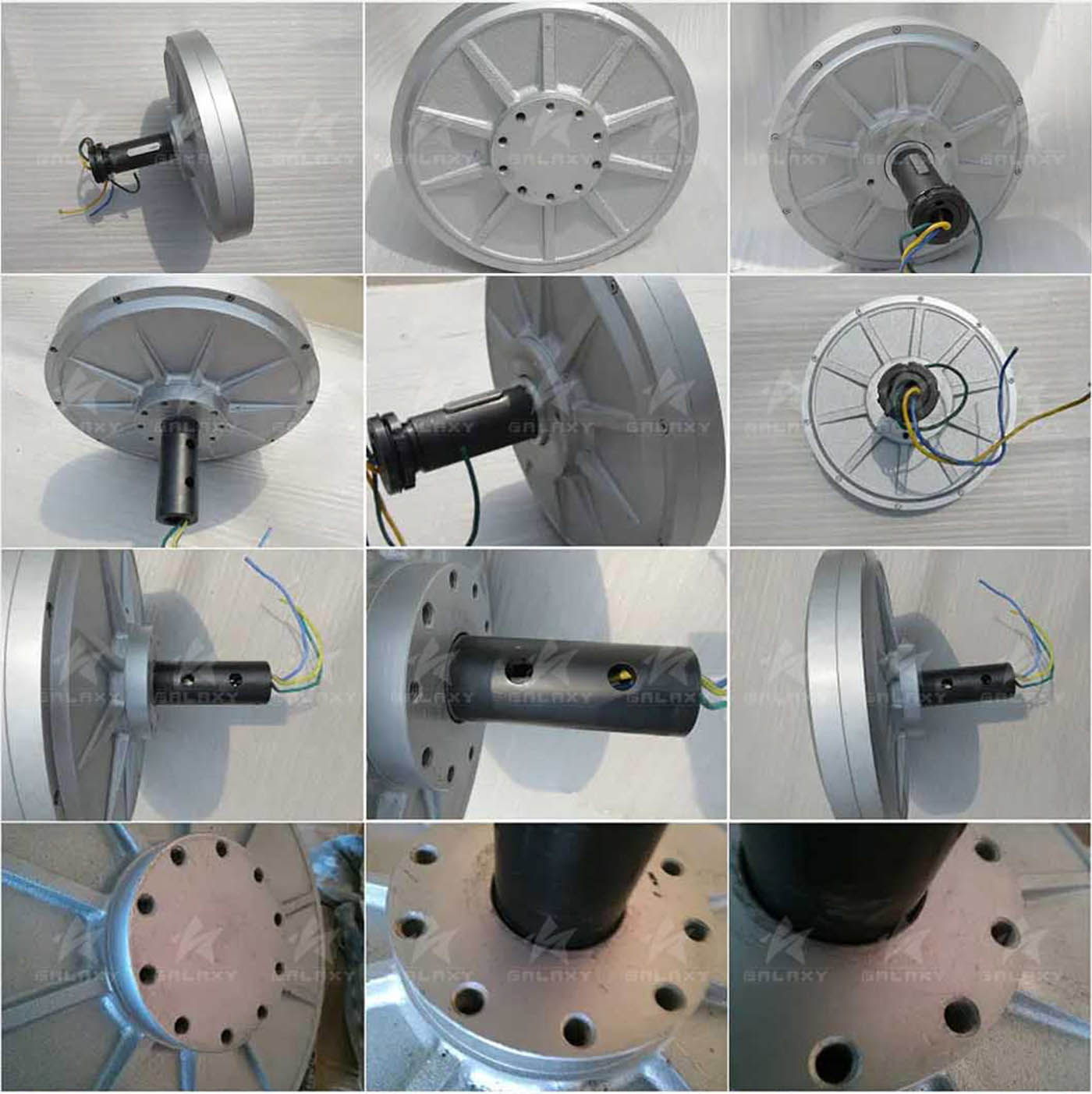

150-300 rpm 1KW-2KW Disk-type Permanent Magnet Generator
1 No iron core, no hysteresis and cogging effect, low starting torque.
2 No iron loss, high efficiency.
3 Adopt unique coreless precision winding technology to design high-precision coils.
4 Rare earth permanent magnets, multi-pole, small air gap, high power density and high output power.
5 Low-speed direct drive, no torque fluctuation.
6 Compact structure, high volume-to-power ratio.
7 No iron loss, low heat generation, low temperature rise.
8 Simple generator structure, easy to install.
9 Brushless structure, maintenance-free.
Product Description
1.Advantage
The disk-type air-core permanent magnet generator produced by our company has many features such as low speed rating, low wind speed starting, small size, low energy consumption, light weight, compact structure and high efficiency.
○1 No iron core, no hysteresis and cogging effect, low starting torque.
○2 No iron loss, high efficiency.
○3 Adopt unique coreless precision winding technology to design high-precision coils.
○4 Rare earth permanent magnets, multi-pole, small air gap, high power density and high output power.
○5 Low-speed direct drive, no torque fluctuation.
○6 Compact structure, high volume-to-power ratio.
○7 No iron loss, low heat generation, low temperature rise.
○8 Simple generator structure, easy to install.
○9 Brushless structure, maintenance-free.
2.Operating Range
Vertical axis wind generator; diesel and gasoline generator; hydro generator.
Product Parameters
|
Model |
JXAG-400 |
|
|
Rated power |
1KW |
2KW |
|
Max Power |
1.5KW |
2.5KW |
|
Rated RPM |
150rpm |
300rpm |
|
Frequancy(Hz) |
45Hz |
90Hz |
|
Rated voltage |
48V~220V |
|
|
Efficiency |
＞90% |
|
|
Wire running method |
Y |
|
|
Insulating resistance |
100Mohm Min(1760V) |
|
|
Leakage level |
<20ma |
|
|
Start torque |
<1 N/M |
|
|
Phase |
3 Phase |
|
|
Struction |
Outer roter |
|
|
Stator |
Coreless wire coil |
|
|
Roter |
Rare earth permanent magnet |
|
|
Outer diameter of generator |
400mm |
|
|
Generator length (without shaft) |
120mm/138mm |
|
|
Shaft diameter |
50mm/59mm |
|
|
Weight of generator |
35kg/51kg |
|
|
Generator shell material |
Aluminum alloy |
|
|
Material of axis |
Carbon steel |
|
|
Bearing |
Deep groove ball bearings |
|
Packaging and Transportation

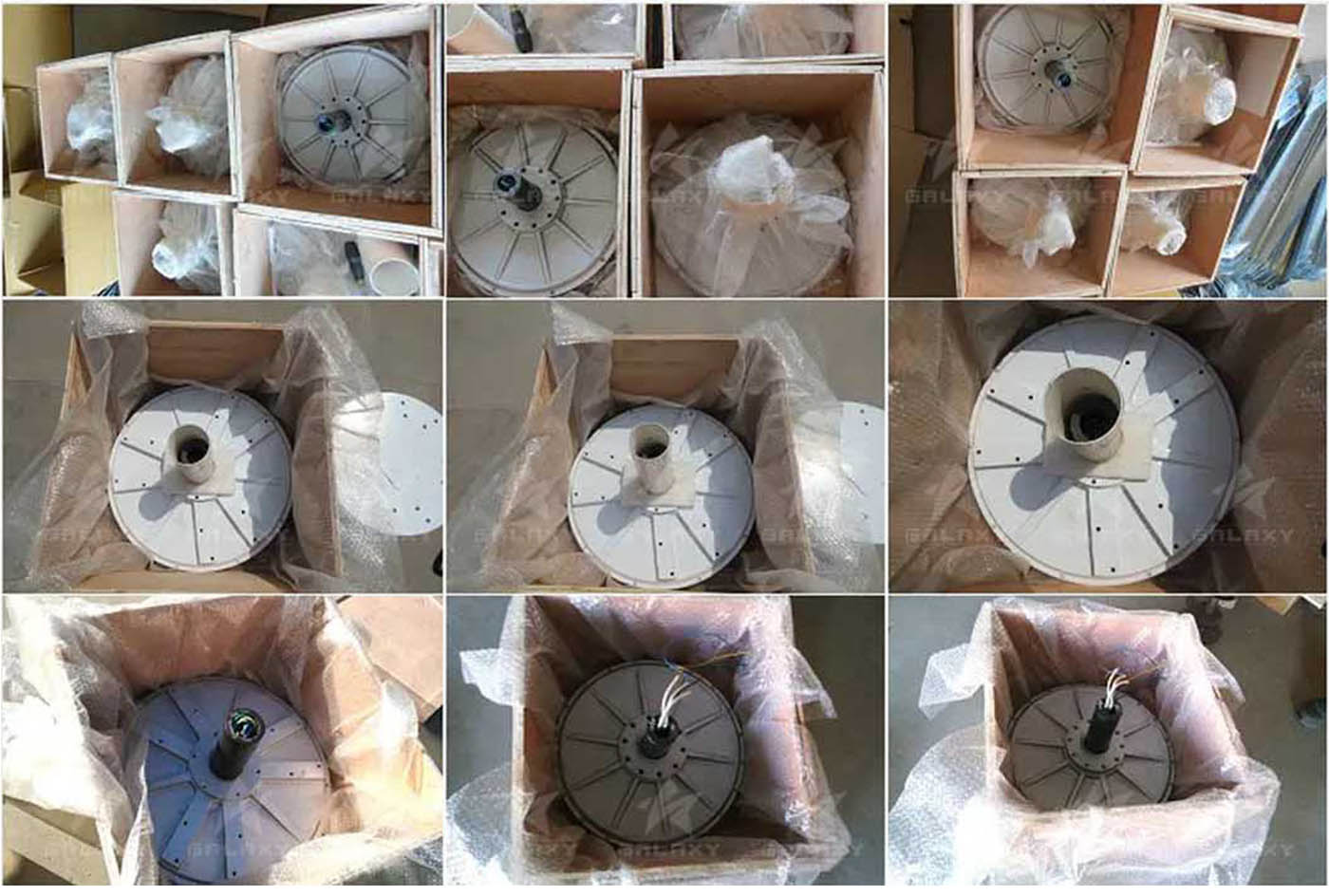

Packaging Details：Foam+Plywooden case
1.The magnetic generator use inner foam protection outer Plywooden case .Generator shaft use pipe protection.
2.Package size and weight please refer to our sales.
3.Shipping by sea with FCL LCL or by air .
If you have any request in package and shipping please tell our sales we will do according to your request.
Supply Ability：400 Set/Sets per Month
