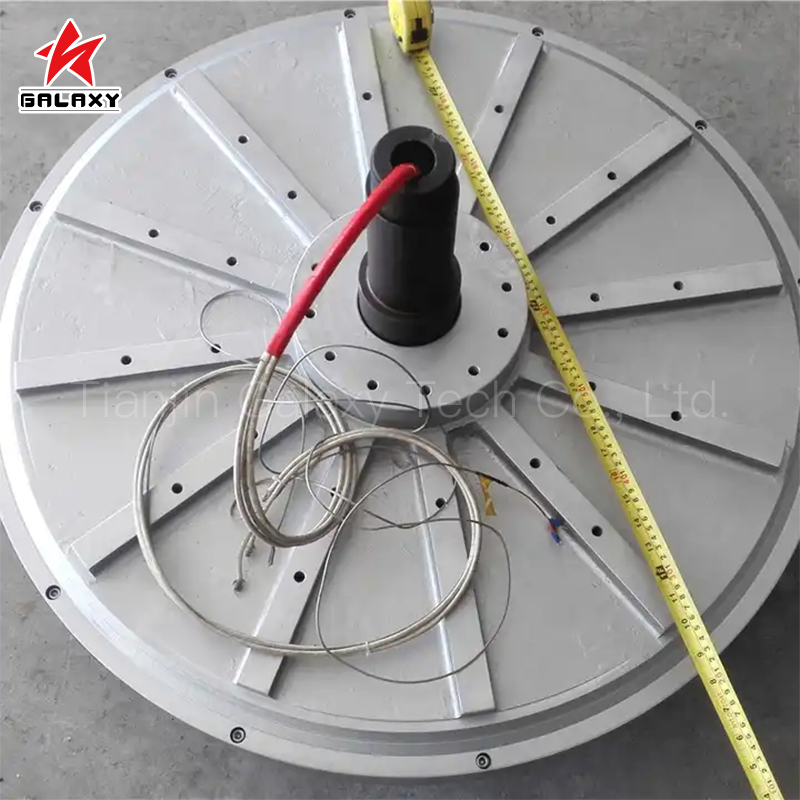

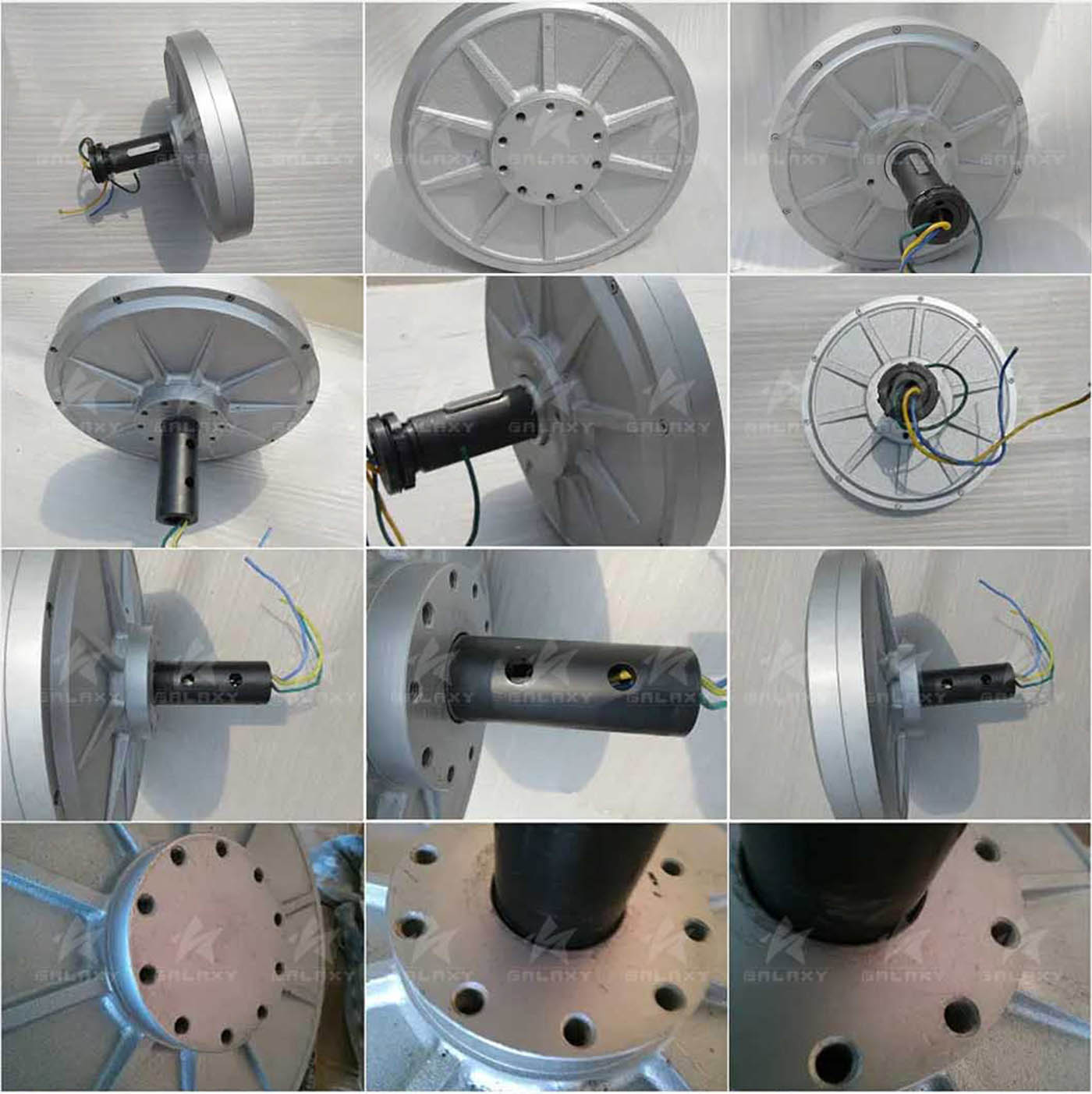

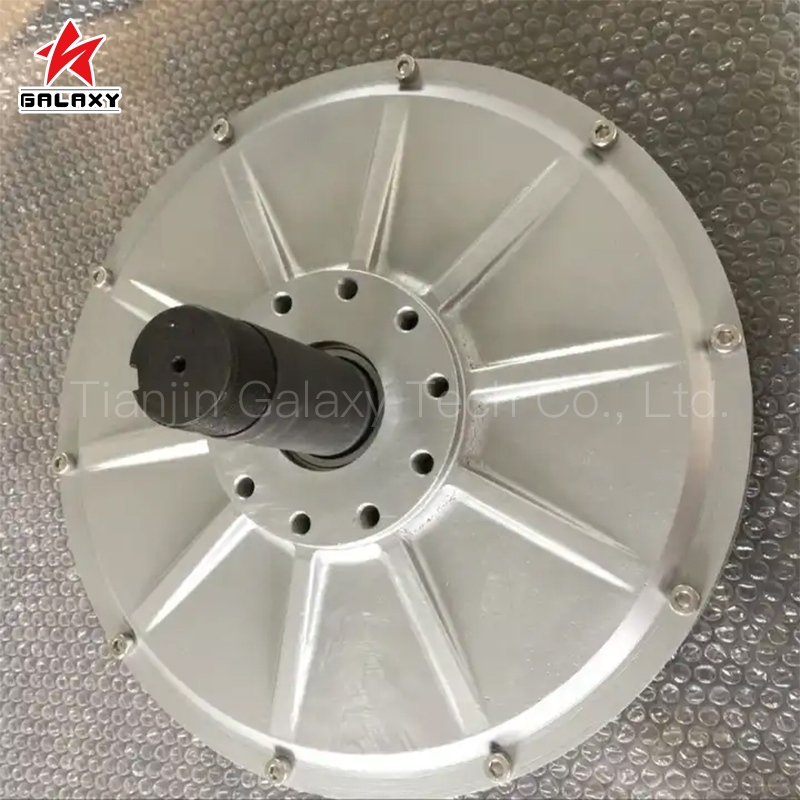

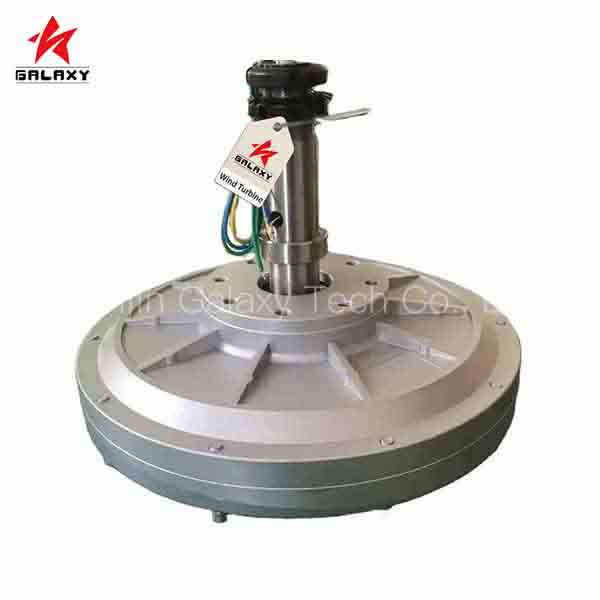

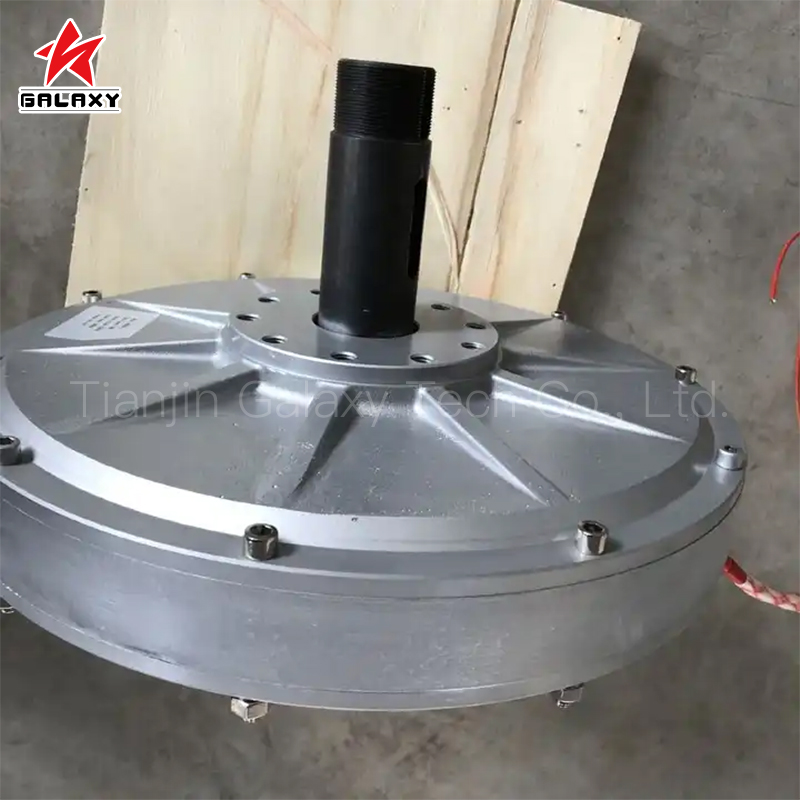

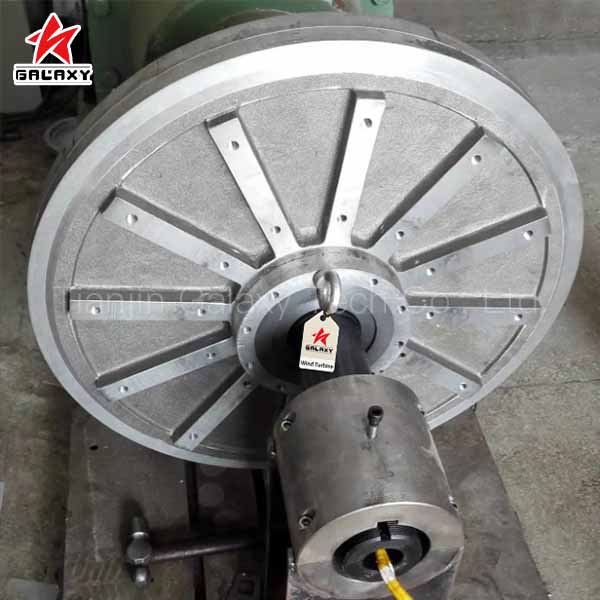

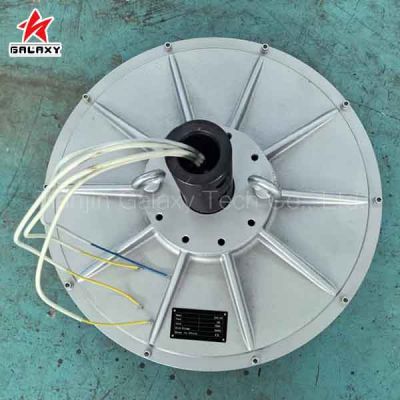

10KW-30KW 70-200 RPM Coreless Generator/Axial Flux Permanent Magnet Generator

Product Description

1.Advantage

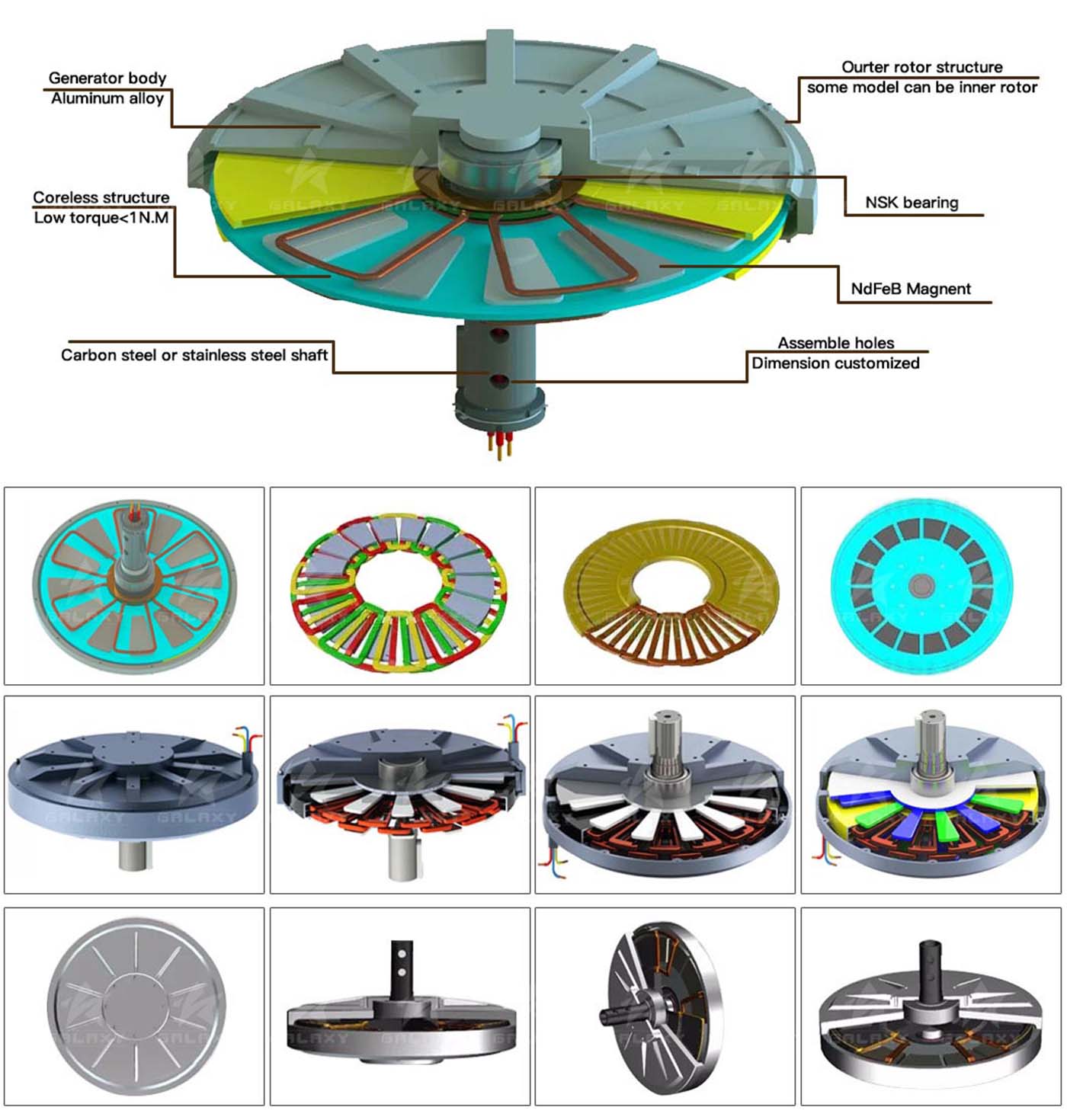

The disk-type air-core permanent magnet generator produced by our company has many features such as low speed rating, low wind speed starting, small size, low energy consumption, light weight, compact structure and high efficiency.

○1 No iron core, no hysteresis and cogging effect, low starting torque.

○2 No iron loss, high efficiency.

○3 Adopt unique coreless precision winding technology to design high-precision coils.

○4 Rare earth permanent magnets, multi-pole, small air gap, high power density and high output power.

○5 Low-speed direct drive, no torque fluctuation.

○6 Compact structure, high volume-to-power ratio.

○7 No iron loss, low heat generation, low temperature rise.

○8 Simple generator structure, easy to install.

○9 Brushless structure, maintenance-free.

2.Operating Range

Vertical axis wind generator; diesel and gasoline generator; hydro generator.

Product Parameters

Packaging and Transportation

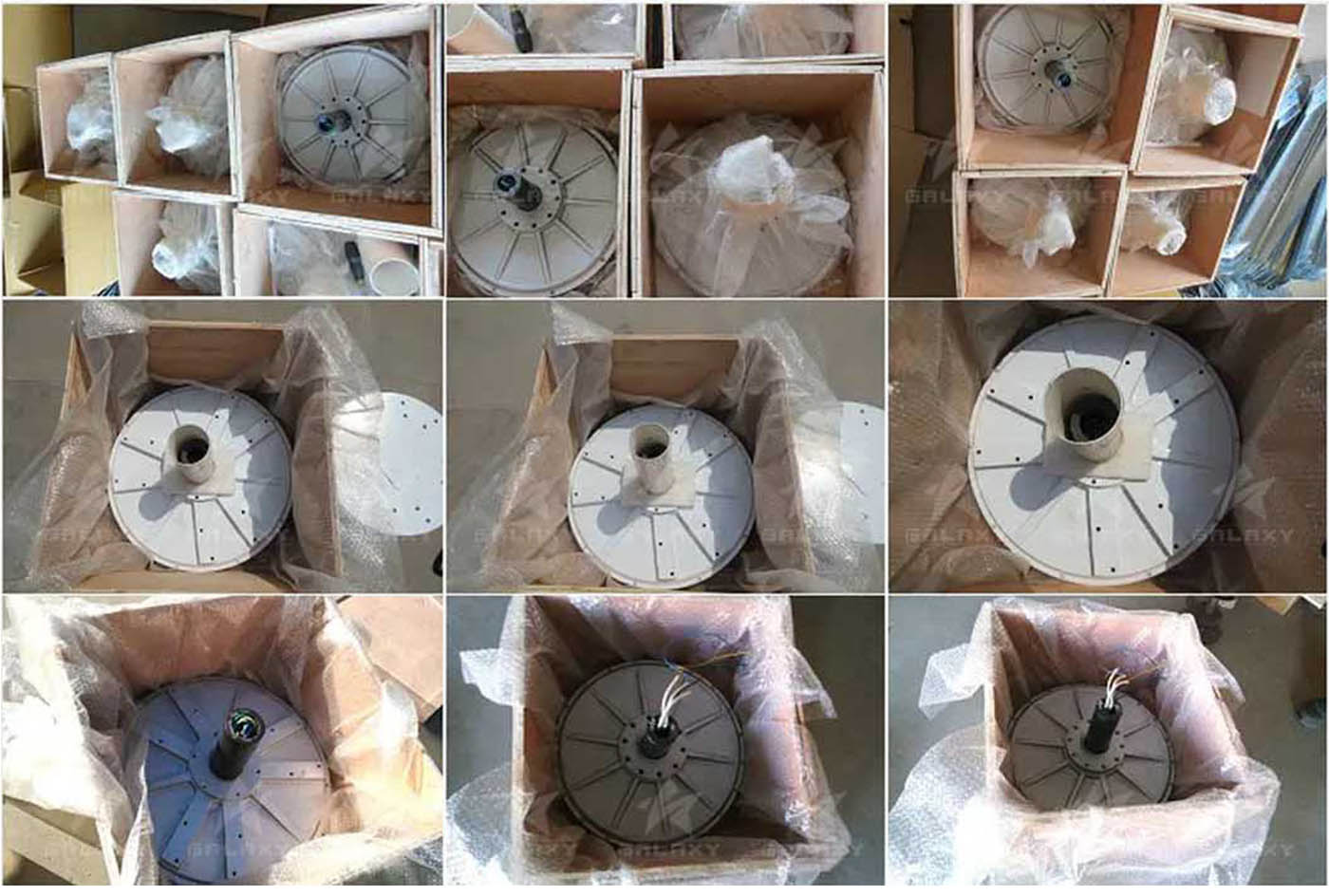

Packaging Details：Foam+Plywooden case

1.The magnetic generator use inner foam protection outer Plywooden case .Generator shaft use pipe protection.

2.Package size and weight please refer to our sales.

3.Shipping by sea with FCL LCL or by air .

If you have any request in package and shipping please tell our sales we will do according to your request.

Supply Ability：400 Set/Sets per Month

Coreless generator is a kind of generator without iron core, which has the following advantages:

1. High efficiency: the rotor of coreless generator （also called axial flux permanent magnet generator）doesn't need iron core, so it can reduce hysteresis and eddy current loss, and improve the efficiency of power generation, and it can increase the efficiency of converting mechanical energy into electric energy to more than 90%.

2. Low noise: the rotor of coreless generator（also called axial flux generator） does not need iron core, so it can reduce the vibration and noise of the rotor.

3. High reliability: The rotor of coreless generator（also called axial flux coreless generator）  does not need iron core, so it can reduce the failure and damage of the rotor and improve the reliability.

4. High stability: the magnetic field of coreless generator（also called axial generator）  is generated by permanent magnets, so it can maintain the stability of the magnetic field and improve the quality of power generation.

5. Convenient maintenance: the maintenance of coreless generator（also called axial flux generator）  is more convenient, which can reduce the maintenance cost.

6. Wide range of application: coreless generators（also called axial flux generator）  are suitable for a variety of occasions, can be used in industry, agriculture, transportation and other fields.

In short, coreless generators （also called axial flux permanent magnet generator） have the advantages of high efficiency, low noise, high reliability and stability, easy maintenance and wide range of application.
