Popularization of Application Knowledge of Small Wind Turbine

The small wind turbines is refers to the 300 w to 50 KW, more than 50 KW medium-sized wind turbines, most applications, the present is also from our recent life is small wind turbines, a brief introduction of the composition of small wind turbine system (a lot of friends of the friends think bought a wind turbine can be used after installation, It actually requires an entire system to work.)

A complete wind turbine system needs to include the following equipment:

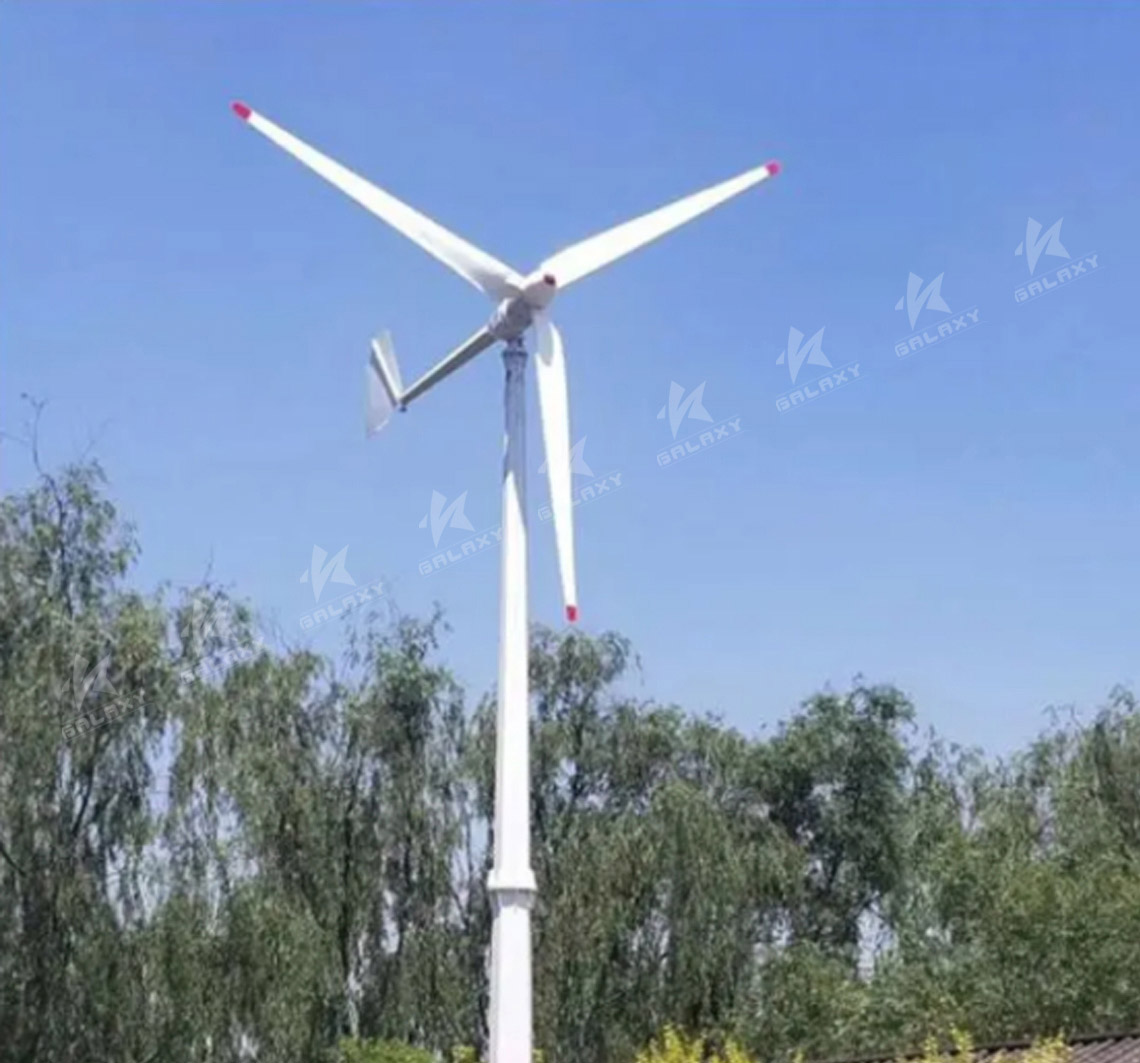

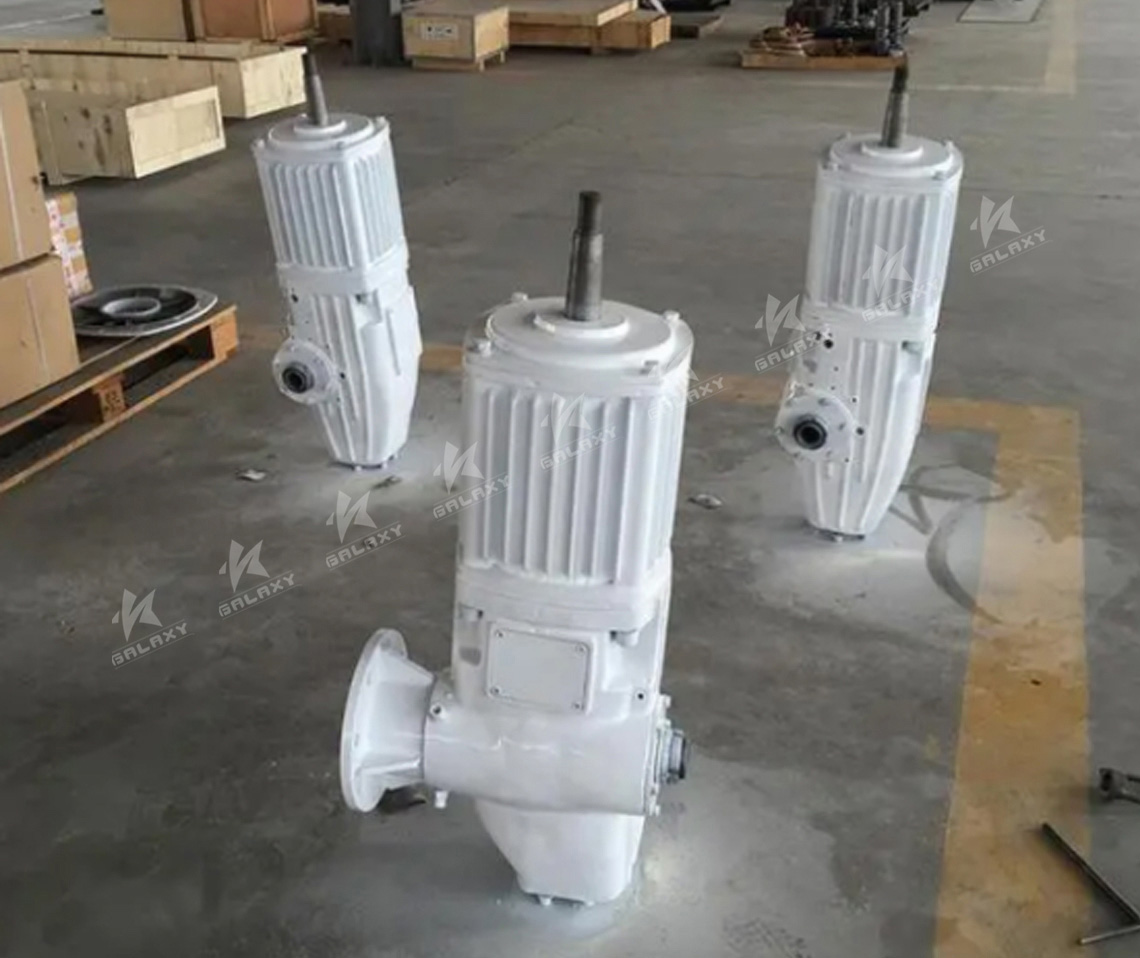

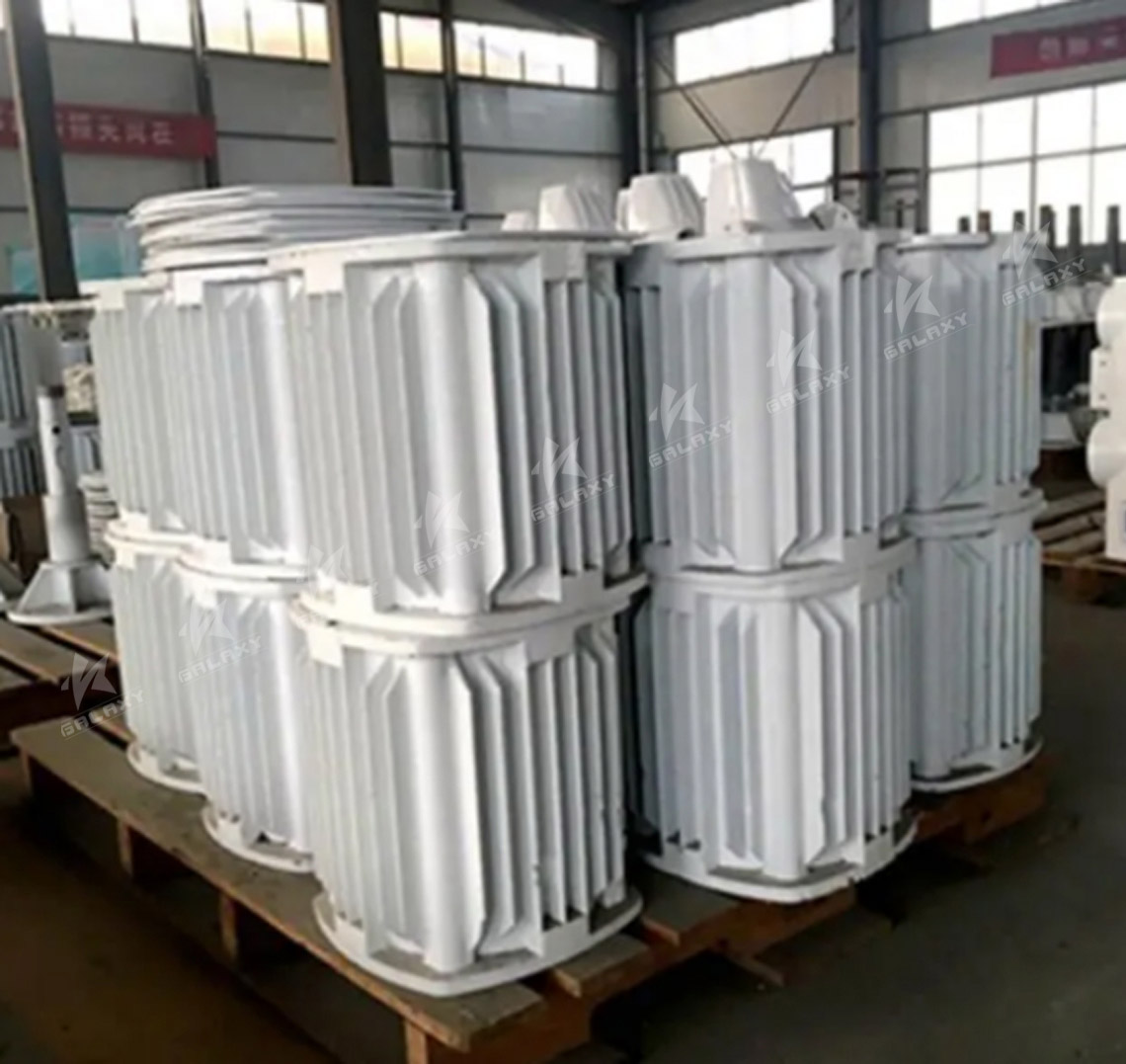

1,wind turbines, the main body: popular speak be brackets at the top of the large wind turbines, consists of three blades, wheel hub, generators, revolving body and tail rudder, is the core of wind turbines, power insufficient, capacity big, all is determined by its general generator production is completed, will be through workshop testing system conform to the requirements of the parameters, to enter the assembly;

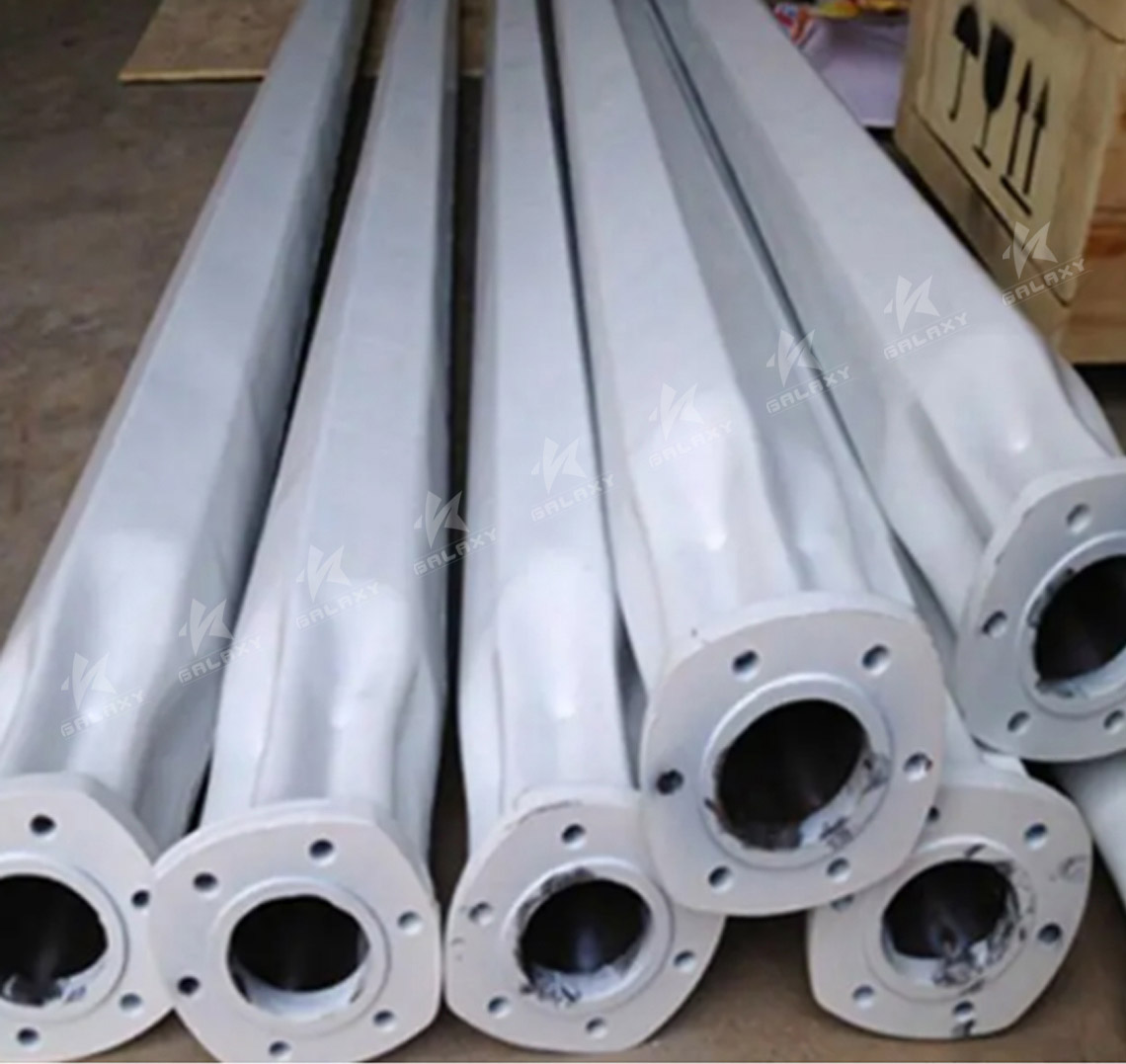

2, bracket (also known as tower cylinder) : the support part of the wind turbine, the height can be optional, it is best to be directly provided by the wind turbine manufacturer;

3, fan controller: the main role of the wind generator controller is the wind generator three-phase AC rectifier into DC, and the battery charging, in addition, the fan controller can also protect control the speed of the wind generator, as well as the battery overcharge protection.

The fan controller comprises a host machine and an unloading device;

4, Battery: battery is used to store the electricity produced by the wind turbine, which is equivalent to a storage tank, and can be charged while discharging; Battery brand selection, model matching is very critical, the same brand of battery, match does not care to affect the service life of the battery!

5, inverter; The role of the inverter is to turn the DC current of the battery into AC, which is used by the power supply equipment. The inverter is divided into single-phase inverter (AC220V after the inverter) and three-phase inverter (AC380V after the inverter). The specific choice depends on your own needs. In addition, the power size of the inverter depends on the total power of the electrical equipment, the power of a single largest equipment and the type of electrical equipment, can not be blindly selected!

In addition, you can also appropriately increase the photovoltaic panels, do wind-wind complementary power generation system, so that the power generation efficiency is higher, the utilization rate of the system is better!

Specific power applications are as follows:

300W wind generator, the power is small, can only television, lighting, electric fan electricity.

500W fan can carry TV, lighting, electric fan and washing machine, slightly more than 300W.

The 1000W fan can power television sets, lighting, electric fans, washing machines and small refrigerators.

2000W fan can carry refrigerator, washing machine, water pump, rice cooker, color TV, lighting, electric fan, charging, heating, induction cooker, electric tools below 1000w, etc.

3KW wind generator can be used for television, lighting, electric fan, washing machine, refrigerator, rice cooker, water pump, air conditioning.

5KW wind generator can take television, lighting, electric fan, washing machine, refrigerator, rice cooker, water pump, air conditioning and other electrical appliances.

10KW fan can be combined with television, lighting, electric fan, washing machine, refrigerator, rice cooker, water pump, air conditioning and small village lighting.

The 20KW fan can supply electricity for television, lighting, electric fan, washing machine, refrigerator, rice cooker, water pump, air conditioning and other electrical appliances, small village lighting and so on.

There are 50KW wind turbine, this kind of general family does not need to use such a high power fan, 50KW fan has been equivalent to a small power grid, so this kind of fan needs to be customized.
